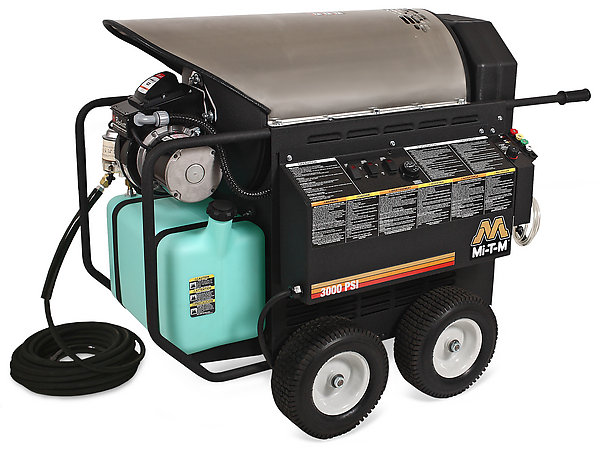

The Mi-T-M HHS-3005-2E3G is part of the HHS Series — a popular choice among contractors for the most rugged applications in oil, trucking, and manufacturing industries. This configuration delivers 4.8 GPM at 3000 PSI through a belt-drive triplex piston pump (ceramic plungers, factory preset unloader, adjustable high-pressure detergent injector) driven by an open drip-proof 460V/3ph electric motor with manual thermal overload protection.
The heat exchanger uses a stainless steel coil wrap with horizontal Schedule 80 pipe coil. The burner fires on No. 1 or No. 2 fuel oil, diesel, or kerosene (NOT approved for biofuel). A Racor fuel filter/water separator protects the burner from contaminated fuel. The 10-gallon polyethylene fuel tank delivers extended run time. Temperature rise: 150°F/66°C above ambient, maximum outlet temperature 200°F.
Standard features: auto start/stop, time delay shutdown, hour meter, adjustable thermostat, polyethylene float tank with inlet filter screen, powder-coated steel frame, 13-inch flat-free tires, 35-foot power cord.
Unit includes: quick connect nozzles (0°, 15°, 25°, 40° plus fixed detergent nozzle), 50-foot x 3/8″ steel wire-braided high-pressure hose with quick connects, adjustable pressure insulated dual lance with trigger gun.
Specifications: 3000 PSI · 4.8 GPM · 460V/3ph · Belt drive · Triplex pump with ceramic plungers · 200°F max outlet · ETL certified · 1-year electric motor warranty.
