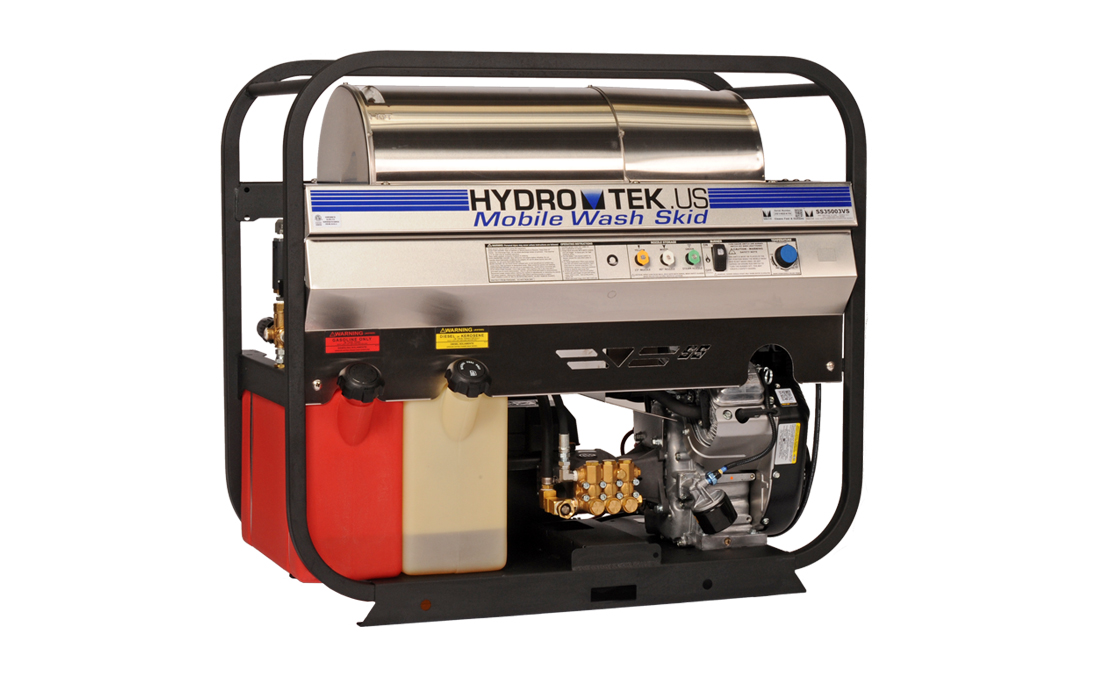

The Hydro Tek SS40005VH is part of the SS Series — Hydro Tek’s gas-driven, diesel-heated mobile wash skid built for hot water pressure cleaning at remote sites where no external electricity is available. The 12V charging system on the engine powers the diesel-fired burner for continuous hot water output.
This configuration delivers 4.8 GPM at 4000 PSI through a belt-drive AR industrial triplex pump driven by a Vanguard 627cc gas engine with electric key start, oil filter, low oil shutdown, and cast iron cylinder for maximum duty and performance.
The 1-1/4″ heavy-gauge Pro-tect-it steel frame with electrostatically applied powder coat finish can be truck or trailer mounted, fitted with an optional wheel kit, or left as a stationary skid. The compact size allows passage through commercial doorways. Stainless steel panels offer lifetime rust and corrosion resistance. Lighted rocker switch, adjustable thermostat (250°F with steam setting), and recessed control panel prevent damage.
The AR pump features concentrically bored ceramic plungers running at low RPM for cooler operation and extended life. EZ Align™ belt tensioning system allows single-bolt belt adjustments. Heavy-duty roto-molded rust-free fuel tank with fuel filter — extended run time up to 8 hours. Flow-activated unloader on higher flow models eliminates pressure spikes when trigger is pulled.
Specifications: 4000 PSI · 4.8 GPM · Vanguard 627cc electric-start gas engine · AR belt-drive triplex pump · 12V DC diesel burner · 250°F with steam · SpiraLast™ coil with lifetime warranty · 50′ high-pressure hose. Dimensions: approximately 47.5″ L x 27.5″ W x 40.25″ H.
