CUDA TOP-LOAD PARTS WASHER MODELS

Cuda Top-load parts washers are the clear choice for your cleaning jobs. Pressurized hot water and specialized industrial detergents clean parts automatically. Which Increases your productivity; saving you money and protecting your workers from nasty solvents and manual scrubbing.

1-Year WarrantyThe 90-day labor warranty for all Cuda parts washers is automatically extended to a 1-Year Labor Warranty with exclusive use of Cuda detergents. Cuda parts washers are also covered by a 1-year parts warranty.

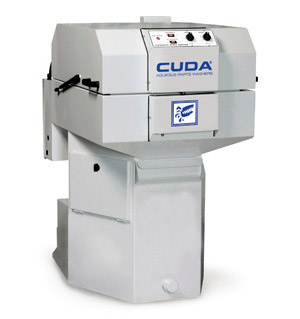

CUDA 2412: AUTOMATIC PARTS WASHER VERSATILE, FOR USE ANYWHERE IN THE SHOP
  • ONLY 35-INCHES WIDE
  • 250-LB WEIGHT CAPACITY
  • 24-INCH TURNTABLE DIAMETER
  • 12-INCH WORKING HEIGHT
  • 1/2 HP HORIZONTAL PUMP
  • AUTOMATIC OIL SKIMMER
  • LOW WATER SHUTDOWN
  • STAINLESS STEEL CABINET
  • 120V SINGLE PHASE 60HZ OR 230V
  • SHIP WEIGHT – 424LBS
CUDA 2518: Extra Capacity Top Load Model
  • 18″ WORKING HEIGHT
  • 25″ TURNTABLE
  • 500-LB LOAD CAPACITY
  • DIMENSIONS – 51″L X 40″W X 50″H
  • AVAILABLE IN STAINLESS STEEL & MILD STEEL
  • VIRTUALLY MAINTENANCE-FREE SEALLESS PUMP
  • BUILT TO WITHSTAND THE HARSH DEMANDS OF EVERYDAY USE
  • COMES STANDARD WITH A TIME-TESTED CHAIN DRIVE ASSEMBLY
  • EXTRA-EASY ACCESS TO THE SUMP AND REMOVABLE DEBRIS SCREEN
CUDA SJ-15: Large Capacity Top Load with water propelled spray bar
  • 350-LB LOAD CAPACITY
  • 3 HP PUMP MOTOR DELIVERING 50 GPM @ 45 PSI
  • DIMENSIONS – 51″L X 48″W X 49″H
  • AVAILABLE IN STAINLESS STEEL & MILD STEEL
  • 32″ X 21″ X 18″ BASKET DIMENSION
  • 90 GALLON SUMP CAPACITY
  • USES PATENTED SPRAY WASH TECHNOLOGY THAT ELIMINATES THE NEED FOR DRIVE MOTOR, GEARS & PULLEYS
  • WATER-PROPELLED SPRAY ARM W/ 23 NOZZLES
  • STATIONARY PARTS BASKET, PARTS ARE HIT FROM EVERY ANGLE WHILE BEING CLEANED
Automatic Oil Skimmer

With stainless steel disc and wiper blades, the skimmer effectively removes oil and grease from the cleaning solution to prolong the life, and to provide a means for convenient oil and grease disposal.

Removable Debis Screen

The patented front access debris screen filters debris particles from the wash solution to ensure clear spray nozzle operation, and also provides a safeguard against small parts that might accidentally be washed through from the cleaning chamber. The debris screen is standard on all Cuda Parts Washers.

Control Panel

All Cuda top-load parts washers have simple control panels for the heater, wash cycle operation and a low-water shut-off indicator.

Easy Access
Sump Cover

The easy access sump cover permits quick and easy cleaning of the Cuda parts washer.

OPTIONS

  • Automatic Water Fill – Automatically adds water if water level drops
  • Filtration System & Sump Sweep – Quickly removes sediment from sump floor through 100 micron filters to help extend life of wash water.
  • Preferred Options Package – Parts Basket, Containment Ring and Oil Container
  • Heater & Skimmer Timers – 24 hour/7 Day
  • Detail Brush – (with pump) Allows easy cleaning of blind holes and difficult areas
  • Power Brush – (pneumatic) Removes stubborn gasket materials and carbon deposits
  • Small Parts Basket – for smaller parts cleaning
  • Containment Ring – 22″, 24″ or 25″ diameter – keeps parts on turntable
  • 60-Mesh Debris Screen Tray Insert – Provides finer screening of sump solution
  • Hour Meter – Displays elapsed time
  • PK-100D Sump Cleaner – Provides an economical and efficient way to process and extend the life of wastewater
  • Oil Drain Container – Collects oil from automatic oil skimmer
  • Wastewater Drum Evaporator – Is ideal for eliminating very low volumes of wasterwater for drying sludge
  • Stainless Steel Upgrade – Available for all models, call for quote

SPECIFICATIONS

Model 2412 Series 2518 Series SJ-15 Series
 Working Height  12 Inches  18 Inches  18 Inches
 Turntable Diameter  24 Inches  25 Inches  25 Inches
 Load Capacity  250 lbs.  500 lbs.  350 lbs.
 Power Available .5 HP, 120V, 1 Ph, 13 Amps
.5 HP, 208V, 1 Ph, 26 Amps
.5 HP, 230V, 1 Ph, 24 Amps
1 HP, 115V, 1 Ph, 15 Amps
1 HP, 208V, 1 Ph, 30 Amps
1 HP, 208V, 3 Ph, 21 Amps
1 HP, 230V, 1 Ph, 28 Amps
1 HP, 230V, 3 Ph, 20 Amps
1 HP, 460V, 3 Ph, 10 Amps
1 HP, 575V, 3 Ph, 8 Amps
2 HP, 208V, 1 Ph, 31 Amps
2 HP, 230V, 1 Ph, 29 Amps
2 HP, 230V, 3 Ph, 18 Amps
 3 HP, 208V, 1 Ph, 40 Amps
3 HP, 208V, 3 Ph, 24 Amps
3 HP, 230V, 1 Ph, 38 Amps
3 HP, 230V, 3 Ph, 23 Amps
3 HP, 460V, 3 Ph, 11 Amps
3 HP, 575V, 3 Ph, 9 Amps
3 HP, 208V, 1 Ph, 42 Amps
3 HP, 208V, 3 Ph, 25 Amps
3 HP, 230V, 1 Ph, 38 Amps
3 HP, 230V, 3 Ph, 23 Amps
3 HP, 460V, 3 Ph, 11 Amps
3 HP, 575V, 3 Ph, 9 Amps
 Pump Capacity  20 GPM @ 22 PSI
28 GPM @ 30 PSI
32 GPM @ 40 PSI
 50 GPM @ 50 PSI  37 GPM @ 30 PSI
 Tank Capacity  50 gal  90 gal
 Electric Heater  1.8 kW
4.5 kW
 6kW  6kW
 Dimensions  45”h x 35”w x 41”d  50”h x 40”w x 51”d  49”h x 48”w x 46”d
 Ship Weight  424 lbs.  706 lbs.  773 lbs.

Call today to speak to one of our knowledgeable sales consultants who can help you find the right machine for your application
